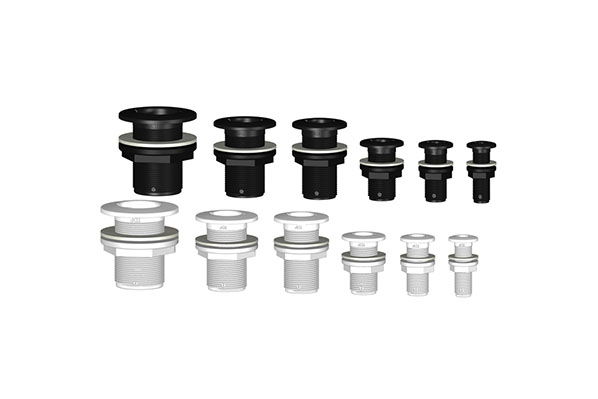

TruDesign Skin Fittings – With Tail
Suitable for underwater use, TruDesign range of Skin Fittings are certified by the International Marine Certification Institute (IMCI) and Bureau VERITAS to ISO 9093-2.
They also comply with ABYC H-27 when used in conjunction with the TruDesign ABYC collar.
Key features
- Manufactured from a glass-reinforced nylon composite - High strength and light weight
- Compatible with all hull types - Can be used on aluminium, steel, wood or GRP hulls
- Immune to corrosion and electrolysis - Long life with no concerns over decreased performance due to corrosion
- Chemical resistant - Impervious to diesel, petrol and antifouling paints
- UV resistant - Will not degrade or discolour with ultraviolet light from the sun
- High quality surface finish - Will not discolour with green film as similar bronze fittings do
- Paintable - Can be painted with all types of antifouling
| PART NUMBER WHITE | PART NUMBER BLACK | HOSE SIZE MM | HOSE SIZE IN | MOUNT HOLE MM | OVERALL LENGTH MM | MAX HULL THICKNESS MM |
| 138647 | 138647BLK | 13 | 1/2 | 22 | 96 | 30 |
| 138653 | 138653BLK | 16 | 5/8 | 22 | 96 | 30 |
| 138648 | 138648BLK | 19 | 3/4 | 27 | 96 | 30 |
| 138649 | 138649BLK | 25 | 1 | 33 | 96 | 30 |
| 138654 | 138654BLK | 28 | 1 1/8 | 33 | 96 | 30 |
| 138650 | 138650BLK | 32 | 1 1/4 | 42 | 96 | 30 |
| 138651 | 138651BLK | 38 | 1 1/2 | 48 | 96 | 30 |
| 138652 | 138652BLK | 50 | 2 | 60 | 122 | 45 |
