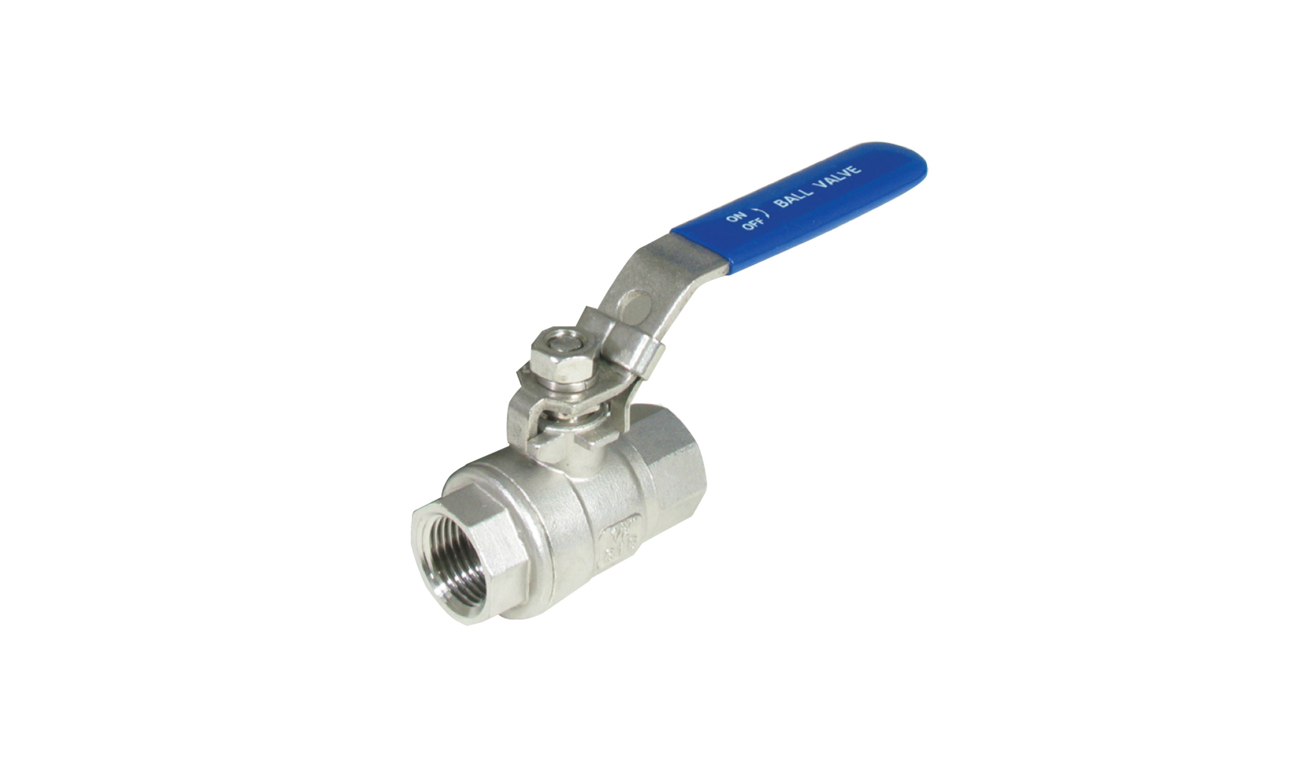

Cast 316 grade housing. Stainless steel ball, stem, handle, nut and spring washer. Two piece, full bore design with teflon seals for smooth operation. Suitable for survey. Slide gate on handle, locks in fully open or fully closed position.


PART NUMBERTHREAD BSP
LENGTH MM
WIDTH MM
HEIGHT MM
HANDLE RADIUS MM
136900
1/2"
62
32
70
105
136902
3/4"
74
42
85
130
136904
1"
86
50
105
145
136906
1 1/4"
90
64
110
155
136908
1 1/2"
120
74
130
190
