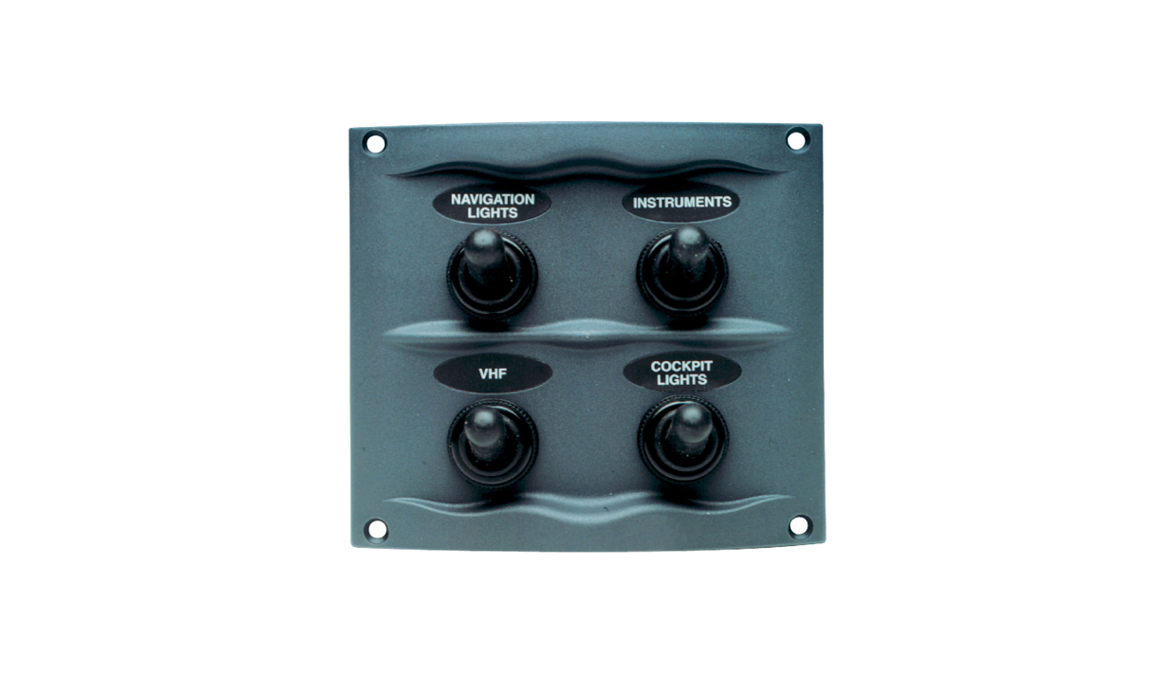

BEP Splash Proof Switch Fuse Panels


Injection moulded plastic panel with high quality two position toggle switches covered by neoprene rubber boots to provide splash proof (IP56) protection from the front face. Each pair of toggle switches is connected to a behind panel mounted AF type blade fuse (115714). Available in 4 or 6 gang versions with a choice of grey or white facia. Supplied complete with 113714 28 piece label set. Switches are rated to 20 amp.


PART NUMBERFACIA COLOURGANGOVERALL SIZE MMCUT OUT SIZE MMINTRUSION MMPOWER VOLTMOUNT SCREWS MM
113240Grey4107 x 9587 x 457512-243 c/s
113241White4107 x 9587 x 457512-24
3 c/s
113250Grey6107 x 9587 x 457512-24
3 c/s
113251White6107 x 9587 x 457512-24
3 c/s

Accessories

  • 113471: On/off/on switch
  • 113472: On/off switch
  • 113491: Rubber boot
  • 113473: (on)/off toggle switch
  • 115714: Fuse holder
  • 113520: Dual 6mm insulated stud
